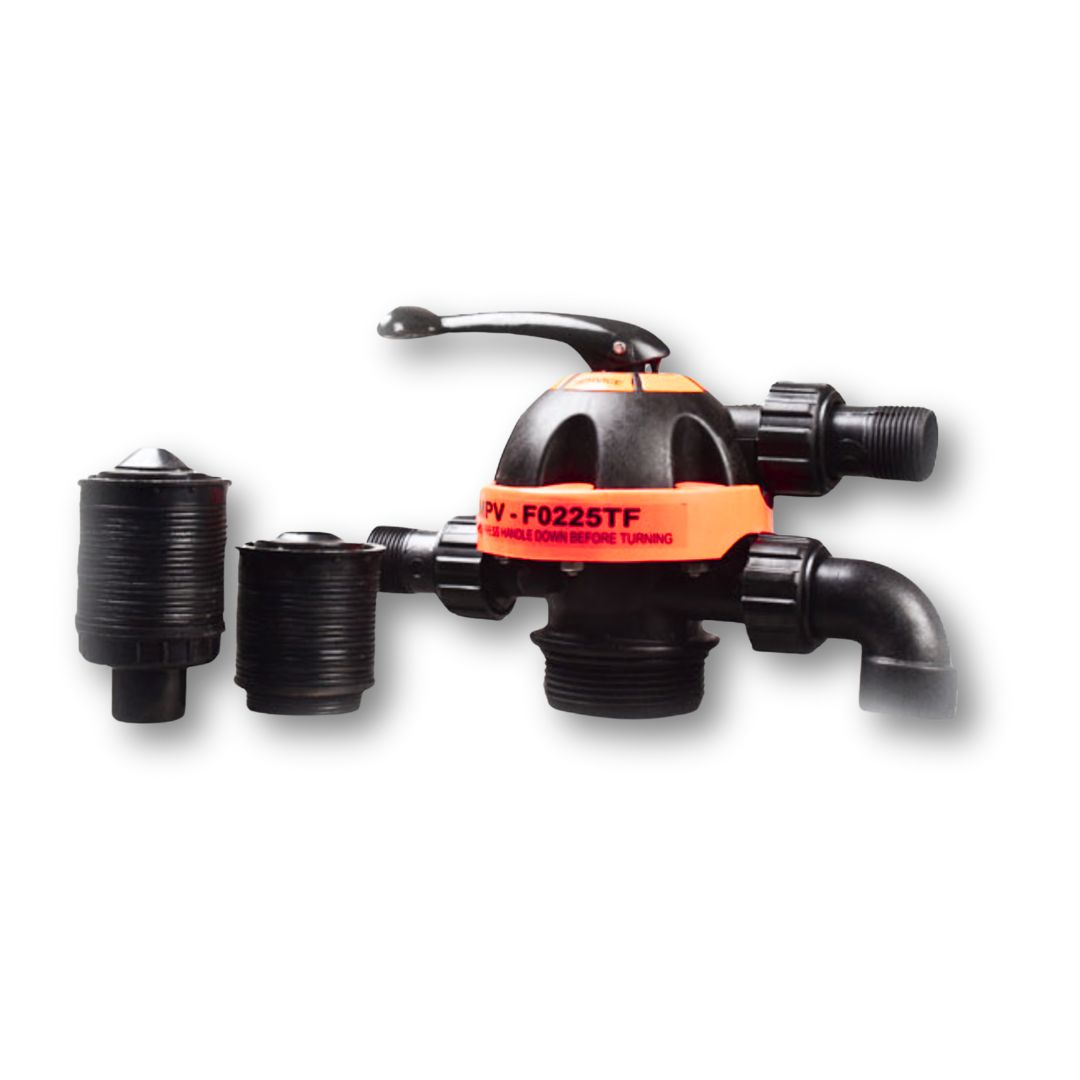

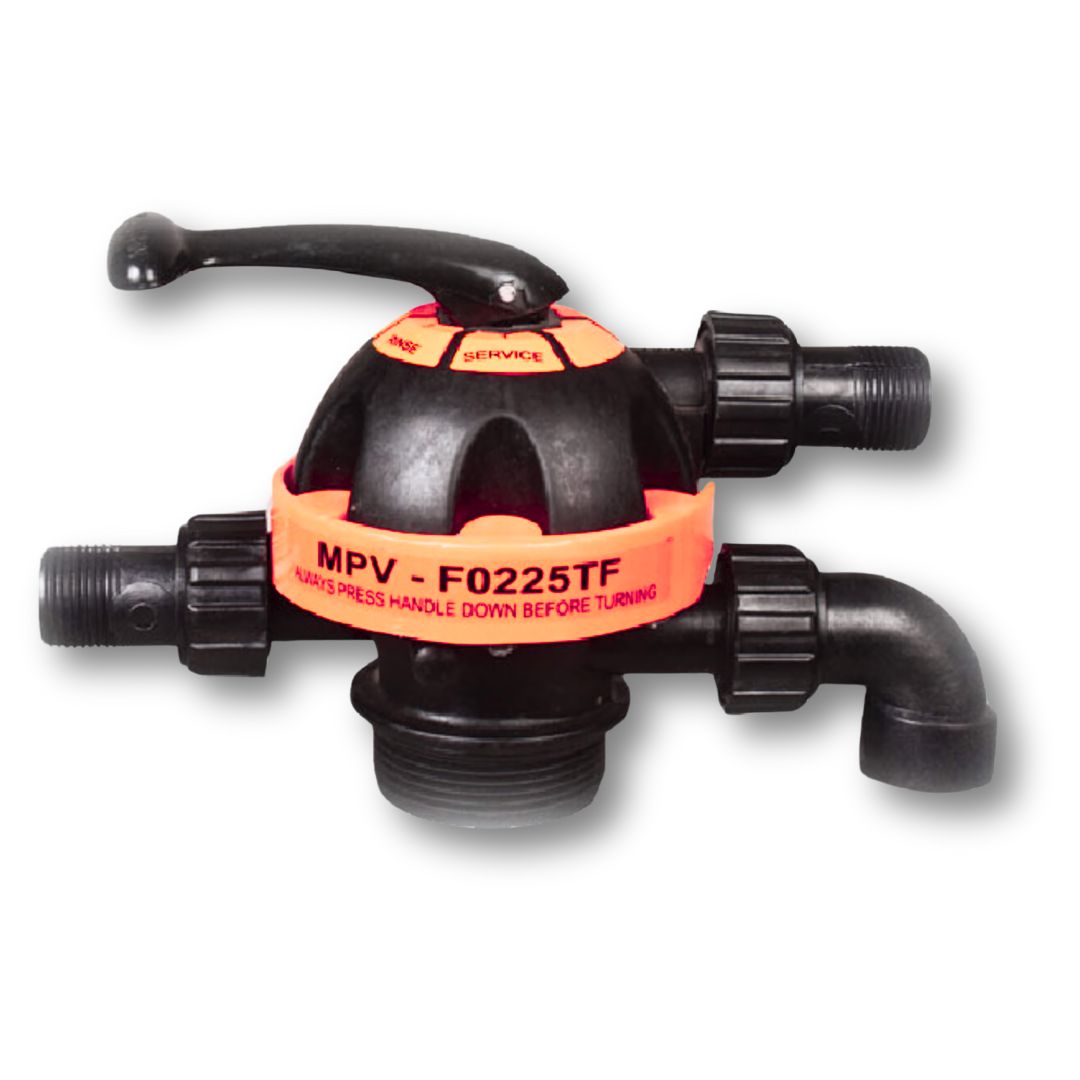

20 NB Top Mount Filter Multiport Valve
Compact Control for Your Water Filtration Needs
Maintain peak performance in your water filtration system with the Initiative 20 NB Top Mount Filter Multiport Valve. This space-saving, manual valve offers a simple and effective way to manage various filtration cycles, ensuring optimal water quality and extending the life of your filter media.
Key Features:
- Top Mount Design: Saves space and provides easy access for operation. Inlet and outlet connections are located on the bottom of the valve.

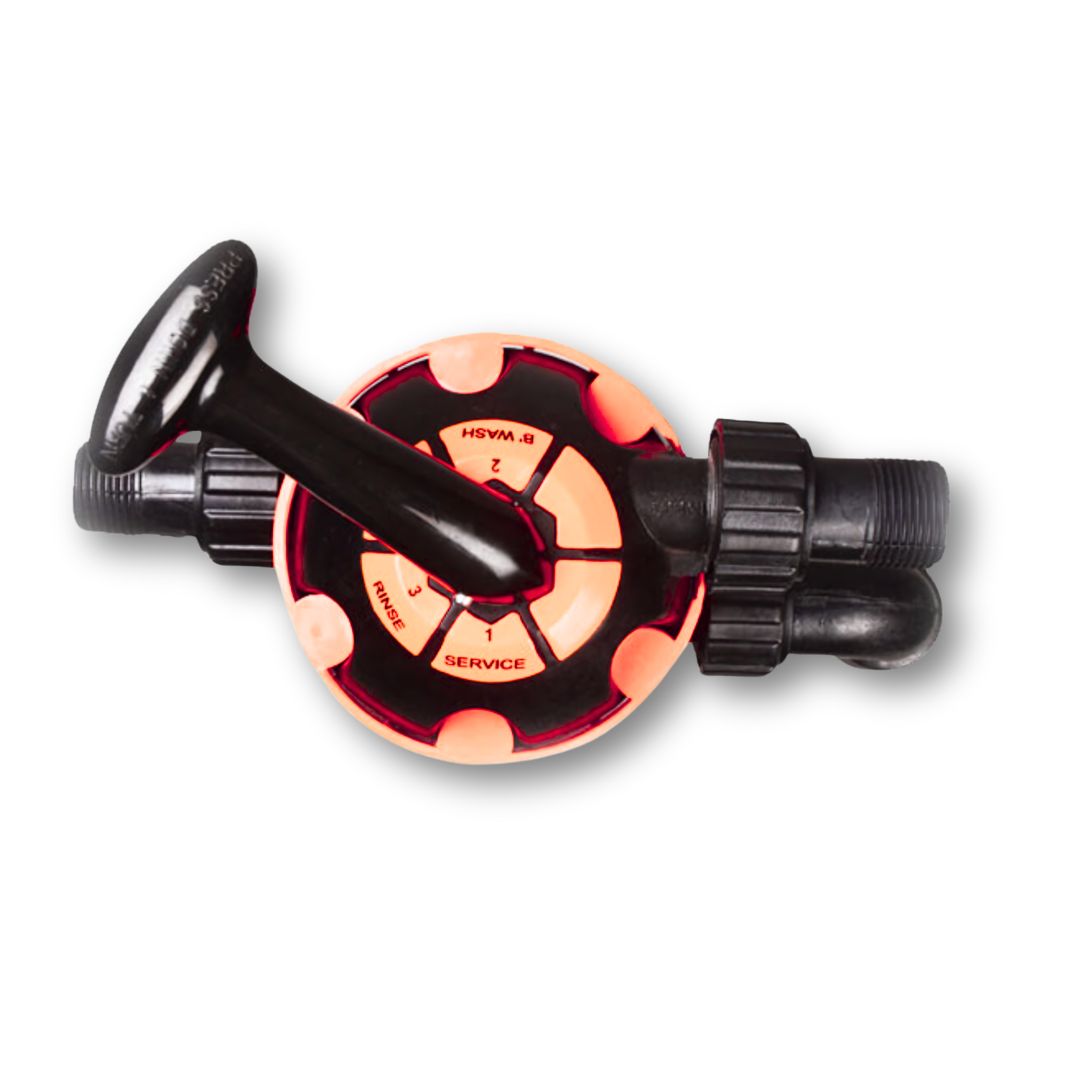

- Manual Multiport Valve: Provides user-friendly control with a single lever for switching between essential functions:
- Service: Enables normal filtered water flow through the system.
- Backwash: Initiates a cleaning cycle to remove trapped contaminants from the filter media, improving filtration efficiency.
- Rinse: Removes any residual cleaning solution after backwashing.
- Closed: Isolates the filter for maintenance or changing media.
- Ideal for Residential Applications: The compact size and flow rate make it perfect for most homes and small businesses.
- Durable Construction: Built with high-quality materials to ensure long-lasting performance.
Technical Specifications:
- Valve Size: 20 NB (Nominal Bore) – compatible with 3/4-inch pipe connections
- Flow Rate: 2 m³/h (at 0.35 kg/cm² pressure)
- Maximum Operating Pressure: 5 kg/cm² (71 psi)
- Max Operating Temperature: 50 Deg. C
- Material: Typically ABS (Acrylonitrile Butadiene Styrene) plastic for chemical resistance and impact strength
- Mounting: Top mount
- Inlet/Outlet/Drain Connections: 3/4″ BSPM (British Standard Pipe Thread – Male)
- Suction Line: ¼” for optional applications (refer to your specific filter system manual for details)
20 NB Top Mount Softener Multiport Valve
Maintain Soft, Clean Water with Effortless Control
Take charge of your home’s water softness with the Initiative 20 NB Top Mount Softener Multiport Valve. This user-friendly valve simplifies the regeneration process of your water softener, ensuring optimal performance and consistently soft water.
Key Features:
- Top Mount Design: Space-saving and easy to access for operation. Inlet and outlet connections are located on the bottom of the valve.
- Manual Multiport Valve: Provides intuitive control with a single lever for managing softener cycles:
- Service: Delivers softened water throughout your home.
- Backwash: Initiates a cleaning cycle that flushes out accumulated hardness minerals, maintaining softener effectiveness.
- Brine Refill (Regeneration): Enables efficient salt water (brine) refill for the softener resin bed, crucial for continued softening.
- Rinse: Removes any residual brine after regeneration, ensuring clean, soft water.
- Closed: Isolates the softener for maintenance or servicing.
- Ideal for Residential Applications: The compact size and flow rate are perfect for most homes.
- Compatible with Various Resins: Can be used with softener tanks holding up to 80 liters of resin (depending on model).
Technical Specifications:
- Valve Size: 20 NB (Nominal Bore) – compatible with 3/4-inch pipe connections
- Flow Rate:
- Service/Brine Refill: 2 m³/h (at 0.35 kg/cm² pressure)
- Backwash/Rinse: 3.5 m³/h (at 0.35 kg/cm² pressure)
- Maximum Operating Pressure: 5 kg/cm² (71 psi)
- Material: Typically PVC (polyvinyl chloride) for corrosion resistance
- Mounting: Top mount
- Inlet/Outlet/Drain Connections: 3/4″ BSPM (British Standard Pipe Thread – Male)
- Resin Capacity: Up to 80 Liters (depending on model)
- Ejector Suction at 2 kg/cm²: 170 Liter/hr.
- Ejector Ratio: 1:2
