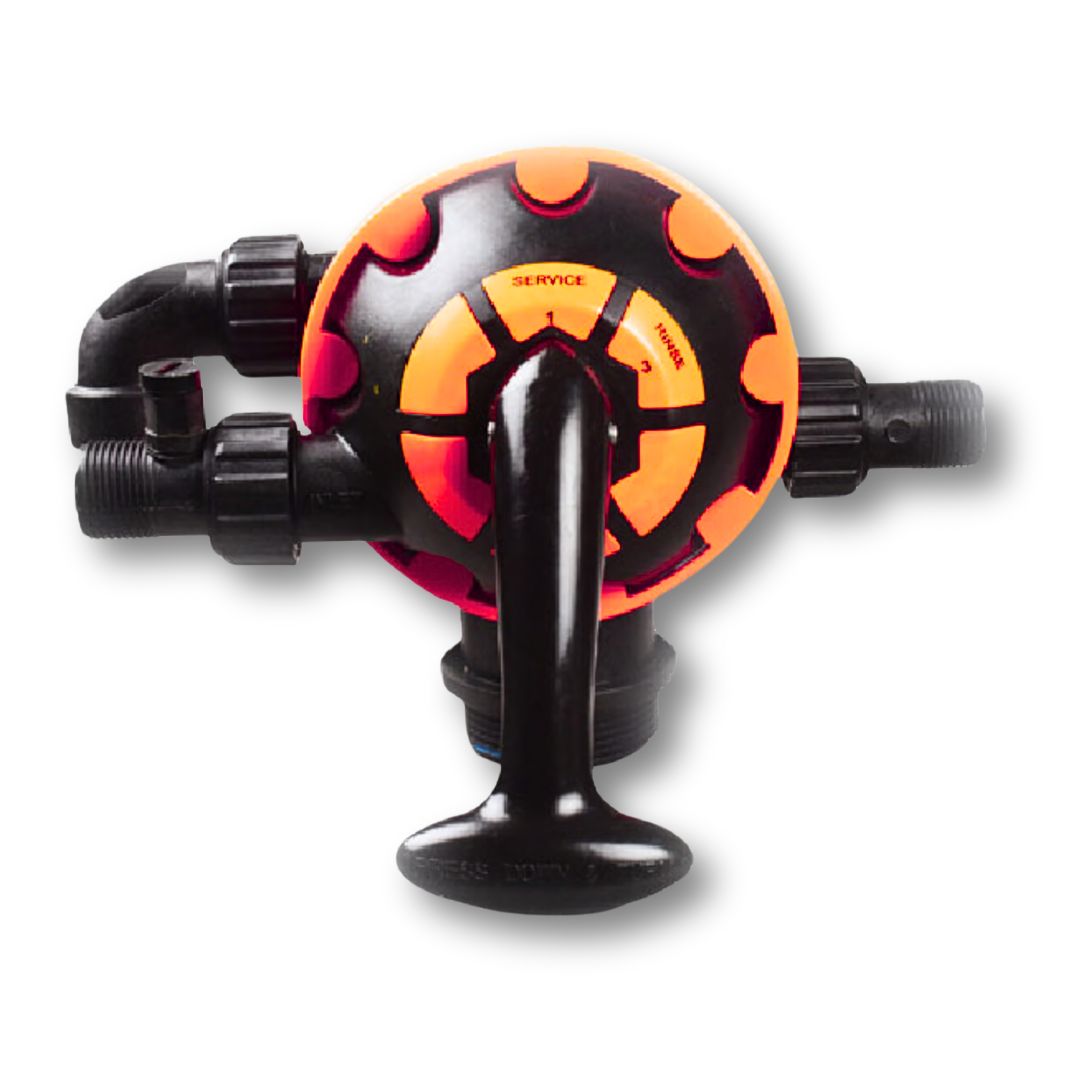

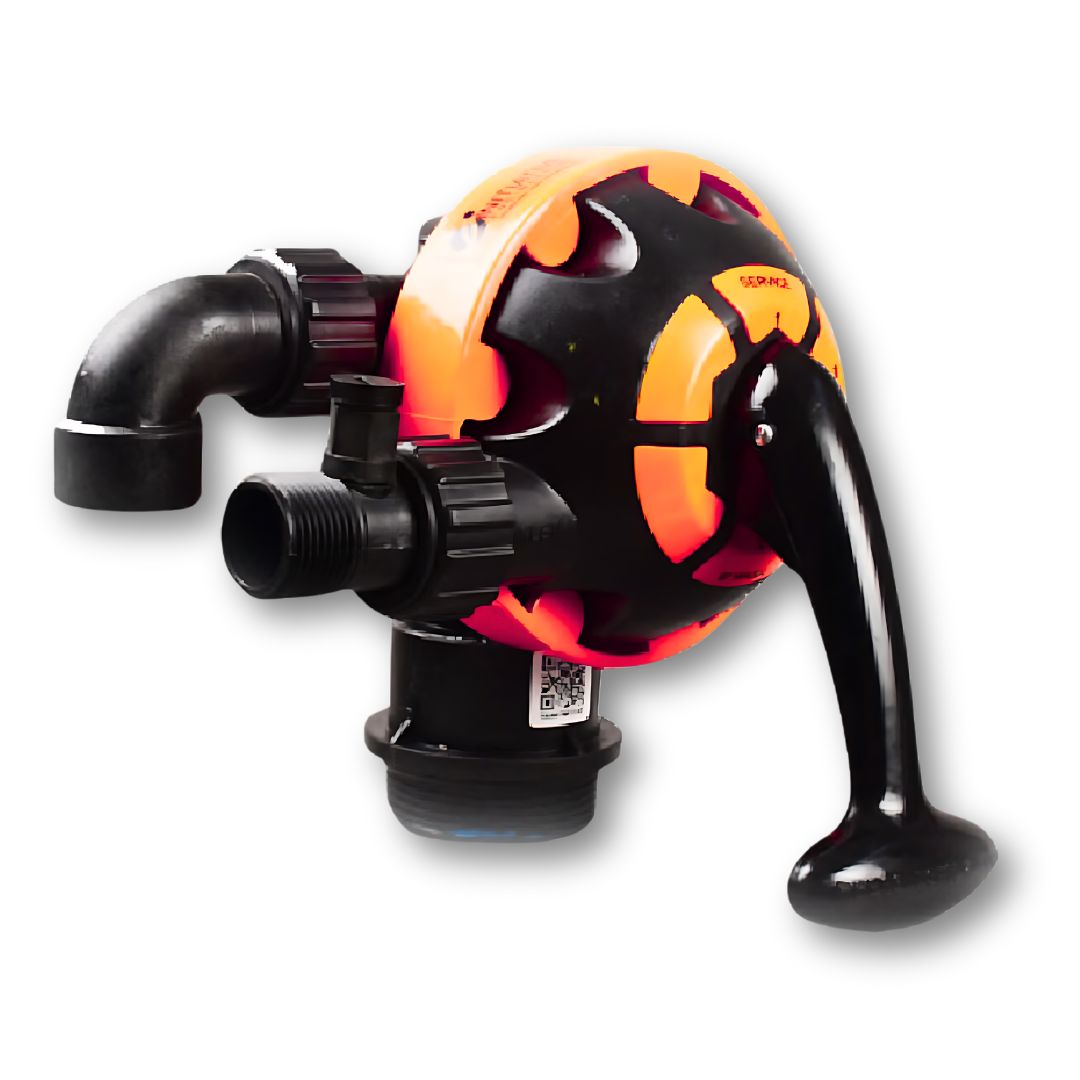

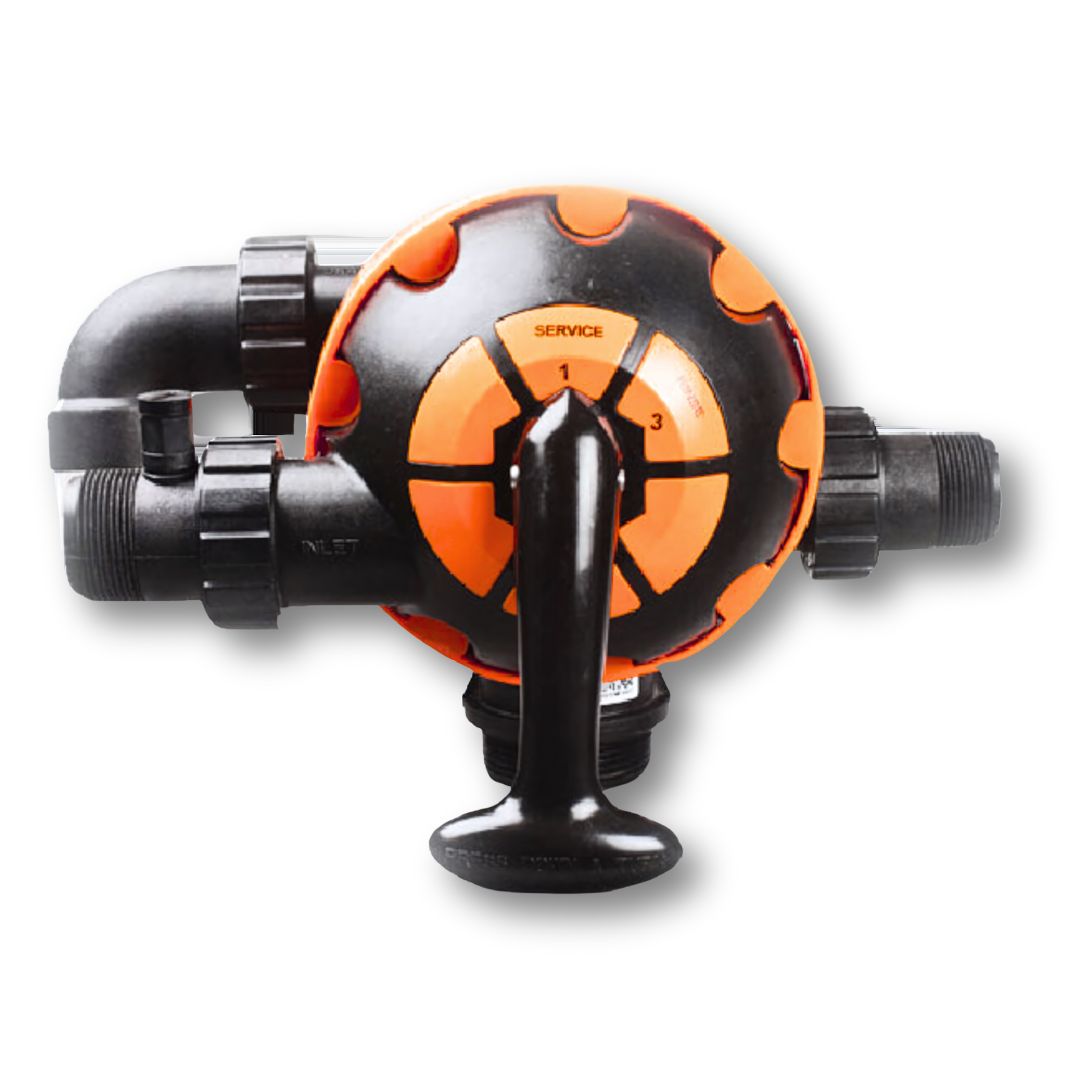

25 NB Top & Side Mount Filter Multiport Valve
Versatile Control for Peak Filtration Performance
Take command of your water filtration with the Initiative 25 NB Top & Side Mount Filter Multiport Valve. This adaptable valve offers a user-friendly solution for various filtration systems, maximizing efficiency and extending filter media life.
Key Features:
- Top or Side Mount Design: Provides installation flexibility to optimize space and accessibility. Choose between top mount with bottom connections or side mount with connections in-line.
- Manual Multiport Valve: Offers intuitive control with a single lever for managing filtration cycles:
- Service: Enables normal filtered water flow through the system.
- Backwash: Initiates a cleaning cycle to remove trapped contaminants from the filter media, improving filtration effectiveness.
- Rinse: Removes any residual cleaning solution after backwashing.
- Closed: Isolates the filter for maintenance or changing media.
- High Flow Capacity: Handles up to 5 cubic meters per hour (m³/h) at optimal flow rate, ideal for mid-sized residential or light commercial applications (refer to your specific filter system specifications for compatibility).
- Durable Construction: Built with strong, reliable materials for long-lasting performance.
Technical Specifications:
- Valve Size: 25 NB (Nominal Bore) – compatible with 1-inch pipe connections
- Flow Rate: 5 m³/h (at 0.35 kg/cm² pressure)
- Maximum Operating Pressure: 5 kg/cm² (71 psi)
- Material: Typically PVC (polyvinyl chloride) for corrosion resistance
- Mounting: Top or Side Mount (selectable)
- Inlet/Outlet/Drain Connections: 1″ BSPM (British Standard Pipe Thread – Male)
25 NB Top & Side Mount Softener Multiport Valve
Effortless Control for Consistently Soft Water
Experience the ease of maintaining soft water throughout your home with the Initiative 25 NB Top & Side Mount Softener Multiport Valve. This versatile valve simplifies the regeneration process of your water softener, ensuring optimal performance and consistently soft water, regardless of installation preference.
Key Features:
- Top or Side Mount Design: Provides installation flexibility to fit your space and access needs. Choose between top mount with bottom connections or side mount with connections in-line.
- Manual Multiport Valve: Offers intuitive control with a single lever for managing softener cycles:
- Service: Delivers luxuriously soft water throughout your home.
- Backwash: Initiates a cleaning cycle that flushes out accumulated hardness minerals, maintaining softener effectiveness.
- Brine Refill (Regeneration): Enables efficient salt water (brine) refill for the softener resin bed, crucial for continued softening.
- Rinse: Removes any residual brine after regeneration, ensuring clean, soft water.
- Closed: Isolates the softener for maintenance or servicing.
- High Flow Capacity: Handles up to 5 cubic meters per hour (m³/h) at optimal flow rate, ideal for mid-sized homes with moderate water hardness (refer to your specific filter system specifications for compatibility).
- Compatible with Various Resins: Can be used with softener tanks holding up to 250 liters of resin (depending on model).
Technical Specifications:
- Valve Size: 25 NB (Nominal Bore) – compatible with 1-inch pipe connections
- Flow Rate:
- Service/Brine Refill: 5 m³/h (at 0.35 kg/cm² pressure)
- Backwash/Rinse: 5 m³/h (at 0.35 kg/cm² pressure) – higher flow rate for efficient cleaning
- Maximum Operating Pressure: 5 kg/cm² (71 psi)
- Material: Typically PVC (polyvinyl chloride) for corrosion resistance
- Mounting: Top or Side Mount (selectable)
- Inlet/Outlet/Drain Connections: 1″ BSPM (British Standard Pipe Thread – Male)
- Resin Capacity: Up to 250 Liters (depending on model)
- Ejector Suction at 2 kg/cm²: 170 Liter/hr.
- Ejector Ratio: 1:2
